Serie | 6, Integrated Design Hood, 90 cm, clear glass black printed, DBB97AM60B
Silent: maximum extractor performance with minimal noise.
An impressive extraction rate of m3/h ensures this hood will have your kitchen odour free in no time.
Expanded storage space: the hood can hold up to 10 kg on each side.
Glass panel with integrated TouchSelect control: an automatic recognition of the glass panel position enables automatical operation of power level and light.
Easy to clean: thanks to the well thought-out design, such as smooth surfaces, the hood is easy to clean.
For recirculated extraction various recirculation kits are available as optional accessories.
Design
Flush-fitted installation for a seamless integration in wall cupboards.
Space efficient compact design for extra storage possibilities on the hood, up to max. 10 kg storage weight per side.
Glass panel with touch control for an easy operation and enhanced vapor capture.
Extraction and lighting are automatically turned on and off by opening and closing the glass panel.
Lighting can also be turned on and off when the glass panel is closed by quick hand touch on control panel.
Includes mats for hood storage areas, protectioning against scratches and to help prevent items moving in this space.
Features
Electronic control via TouchControl
3 power levels & intensive setting
Softlight dimmer function
3 x 2 W LED lights
Colour Temperature: 3500 K
Light Intensity: 517 lux
Automatic intensive revert
Automatic intensive revert (6mins)
Steel filter cover
2 removable metal grease filter cassettes
Easy to clean smooth surfaces and materials.
Performance
Extraction rate according to EN 61591 15 cm:
max. Normal use460m3/h
Intensive749 m3/h
Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
Max. normal use:63dB(A) re 1 pW
Intensive:73 dB(A) re 1 pW
Noise max. Normal Level: Noise, max. speed in normal us: 63 dB dB*
With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
Extraction rate in recirculation mode: Max. normal use:451m3/h
Intensive:652m3/h
Noise level in recirculation mode: Max. normal use:67dB(A) re 1 pW
Intensive:74 dB(A) re 1 pW
Planning and installation information
Installation system: IDH comfort installation

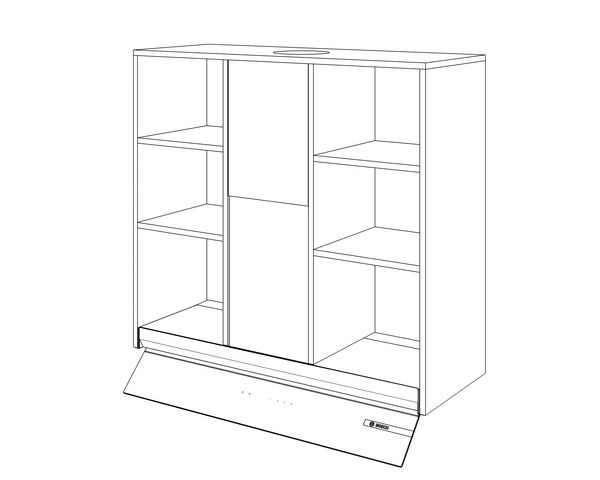

Suitable for installation in bottomless wall cupboards.

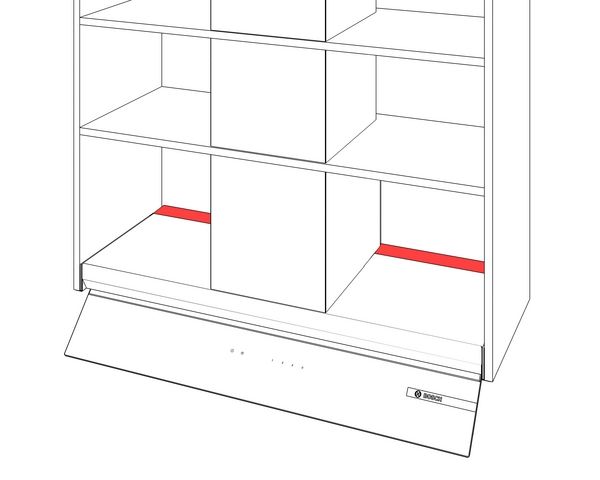

Enclosed spacers for installation in wall cupboards with maximum depth of up to 360mm.
For installation in higher wall cupboards chimney extensions are available as optional accessories.
Chimney extensions are compatible with the available recirculation kits.
Dimensions (HxWxD): 340 x 897 x 298 mm
Built-in dimensions (HxWxD): 340 x 860 x 300 mm
Diameter pipe 150 mm ( 120 mm enclosed)
Back-pressure flap: Yes
Electrical cable length 1.3 m
Please reference the built-in dimensions provided in the installation drawings
Consumption Data
Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
Average Energy Consumption: 64.7 kWh/year*
Blower Efficiency Class: B*
Lighting Efficiency Class: A*
Grease Filtering Efficiency Class: B*
Power rating: 259 W
Silence
A relaxed cooking environment can be the make or break of your dinner party. We’ve therefore made our hoods so quiet that you hardly notice them, so you can easily chat with your guests while cooking.
Expanded storage space
Finally, more room beside and on the hood and not just for spices. The hood with the T-shaped body itself serves as storage space and can hold up to 10 kg on each side. Thanks to its optimised design, additional shelving can be installed in the upper cabinet to the left and right of the chimney, providing you with even more storage space for example, for cookery books and cooking utensils.
Glass panel with integrated TouchSelect control
With the new TouchSelect controls, not only can you activate all three power levels plus the intensive level, but you can also activate the lighting. The controls aren’t located directly on the hood, but are instead situated on an innovative glass panel that can be folded in or out to any angle, depending on y
our needs. So, for example, you don’t have to open the upper cabinet when using the hood. You can activate the hood simply by folding down the glass panel, and deactivate it by folding the panel back up again. The same applies to switching the light on and off, although you also have another option for controlling the lighting. When the hood is deactivated and the glass panel is folded up, just touch the glass panel near the TouchSelect area and the light will switch on.
High extraction rate
No matter whether you have an open-plan kitchen and living-room or a small, closed-off kitchen. We offer the optimum air volume for kitchens of all sizes. Air should be exchanged 6 to 12 times an hour to ensure a consistently pleasant ambience. To do so, the air delivery volume or power of the cooker hood must be appropriate to the room volume.
Flexibility
Freely design your upper cabinet to meet your specific needs. Thanks to the spacer, hoods can be installed in cabinets from 32 cm to 36 cm deep. The height is also flexible, thanks to additional chimney extensions. The optional accessories with their elegant black design can be pulled out to correspond to the height of the cabinet, allowing cabinet heights of up to 90 cm or more. You can just as flexibly design the interior by choosing both the number of shelves and their materials and colour in order to match the shape, colour and surface of the modern chimney design. And thanks to the hood’s slanted front, you can also choose handleless furniture fronts.
LED illumination
LED lights have an impressive service life with several thousand of operating hours. Thanks to their especially low power consumption they use way less electricity than comparable conventional halogen spots. The white LED lights provide a clear and bright illumination whilst cooking.
Seamless integration
Do you prefer a minimalist design Thanks to flush installation in an upper cabinet without the bottom, the new integrated design hood is almost invisible when deactivated. The glass control panel can also be folded under the hood when it`s not in use, so it’s tucked away out of sight.
Furniture protection
When you cook, moisture and grease rise. Years of this can result in wear and tear on the kitchen furniture installed above the hob. Correct installation of the integrated design hood minimises the penetration of steam and grease into the upper cabinet. The glass panel already protects the furniture panel from rising steam while also improving enhanced vapour capture. The L-shaped profiles on the sidewalls and an adjustable spacer on the rear furniture wall also prevent moisture and other substances from penetrating the furniture.
Flexibility
Freely design your upper cabinet to meet your specific needs. Thanks to the spacer, hoods can be installed in cabinets from 32 cm to 36 cm deep. The height is also flexible, thanks to additional chimney extensions. The optional accessories with their elegant black design can be pulled out to correspond to the height of the cabinet, allowing cabinet heights of up to 90 cm or more. You can just as flexibly design the interior by choosing both the number of shelves and their materials and colour in order to match the shape, colour and surface of the modern chimney design. And thanks to the hood’s slanted front, you can also choose handleless furniture fronts.
Product Specifications
EAN
4240000000000
Division Name
Cooking
Major Department Name
Hoods
Department Name
Integrated Hoods
Colour Name
Black
Features | Benefits
Perfectly integrated design hood for flush installation and optimal usage of space inside your cupboard.
Country of Origin - Code
GERMANY
Brand Name
Bosch
Width
897
Depth
298
Net Weight
10
Gross Weight
17
Energy Efficiency Class
B
Noise Level
63
Typology
Built-in/Built-under
Type of Control
Electronic
Type of Control Settings
LED, touch control
Construction Type
Built-In
Installation Type
Built-In
Appliance Voltage (V)
220-240
Appliance Frequency (Hz)
50
Approval Certificates
CE, E17D UKCA marking, VDE
Plug Type
GB plug
Number of Motors
1
Number of Lights
3
Cord Length
130
Min Niche Width
860
Max Niche Width
860
Niche Depth
300
Operating Mode
Convertible
Motor Location
Integrated motor in hood body
Fluid Dynamic Efficiency
28
Fluid Dynamic Efficiency Class
B
Lighting Efficiency
57
Lighting Efficiency Class
A
Grease Filtering Efficiency
90
Grease Filtering Efficiency Class
B
Max Air Flow
460
Min Air Flow
265
Air Flow Boost
749
Sound Power Max Speed
63
Sound Power Min Speed
50
Sound Power Boost
73
Noise Level Boost Position
73
Max Output Air Extraction
460
Boost Position Air Extraction
749
Max Output Recirculating Air
451
Boost Position Output Recirculating
652
Grease Filter Material
Washable stainless steel
No Return Air Flow Flap
Yes
Odor Filter
No
Height without Chimney
60
Diameter of Air Outlet
150
Delivery Information
Availability is indicated near the Add to Basket button. We also add a note here when we know there are extended lead times or possible supply disruptions. Please feel to contact us to double check.
In Stock
An item that is ready to dispatch immediately and should be delivered within a few days.
Add to basket
No additional stock availability information is listed – but the add to basket button is showing. An item that we usually stock or are able to source within a few days. The delivery time should be within 1 week.
Backorder
An item that has sold out or has an extended lead time. We try to add additional times to the listing when we have the information. You are able to buy the item to secure stock.
Out of Stock
No re-stock dates are confirmed and you are currently unable to buy the item. Please get in touch to find out current lead times.
While we always endeavour to keep the site as accurate as possible, due to the current uncertainty with the availability of products there are times where a product may have gone out of stock. We’ll make sure we let you know as soon as we can if there is a problem and offer a solution where we can.
Delivery Methods
Smaller items like microwaves, hobs, taps and some hoods are dispatched via a courier, you will get an email and text with tracking information. If you would like to receive text updates, please ensure your mobile number is added in the mobile phone box to enable this.
Larger items are delivered using a variety of methods, but most ovens, large appliances, bathroom screens and baths are dispatched using a 2 man delivery service with express deliveries sent on a pallet. Please see the delivery page for more information on this. We will get in touch to arrange the delivery before dispatch.
