Bosch PCP6A5B90, Gas hob
Product code: PCP6A5B90
£349.00 £459.00
Serie | 6, Gas hob, 60 cm, Stainless steel, PCP6A5B90
- FlameSelect: adjust the gas flame precisely using nine defined levels.
- Continuous cast-iron pan support: for high firmness and stability of cookware.
- Biomethane-ready: your gas hob can also be powered with renewable biomethane gas.

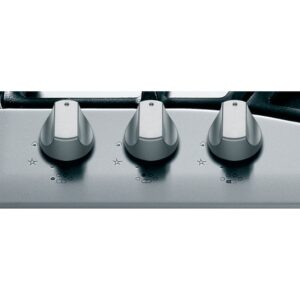

- Ergonomic control knobs with raised center for precise adjustments.
- Surface colour: elegant stainless-steel design.
-
Product Description
Design

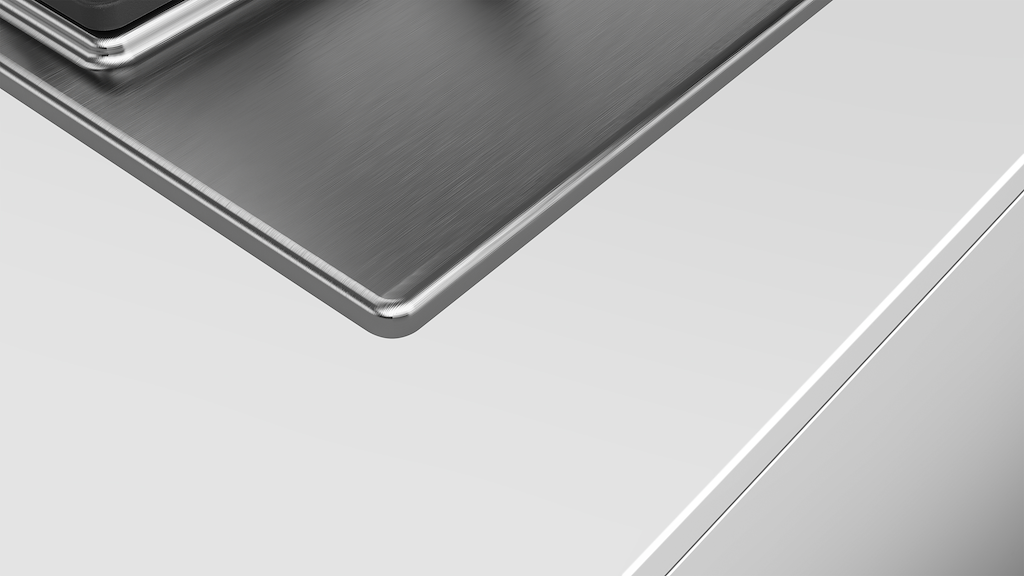

- Stainless steel surface

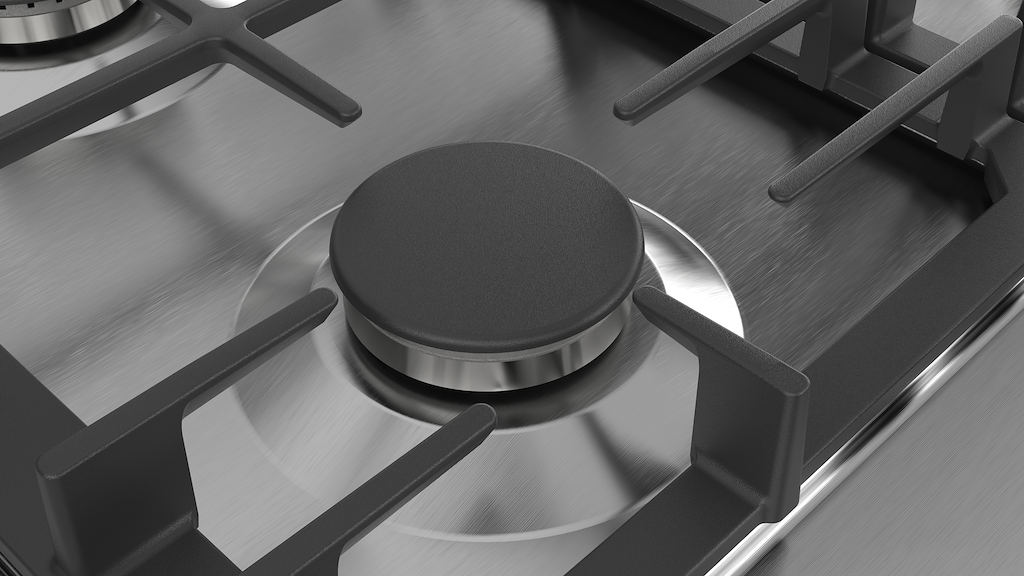

- Cast iron pan supports
Usage convenience

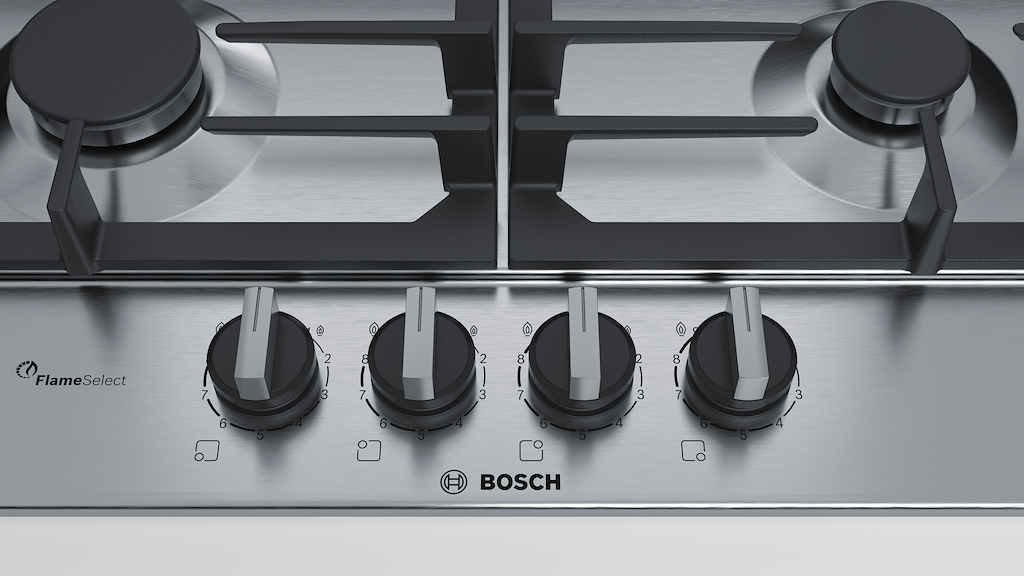

- FlameSelect: precisely control and adjust the flame in nine defined levels.
- Design co-ordinated control dials: easily access dials in front with strong grip for effortless turning.
- Ignition via control dials: just push and turn the dials to ignite the flame.
Burners and power

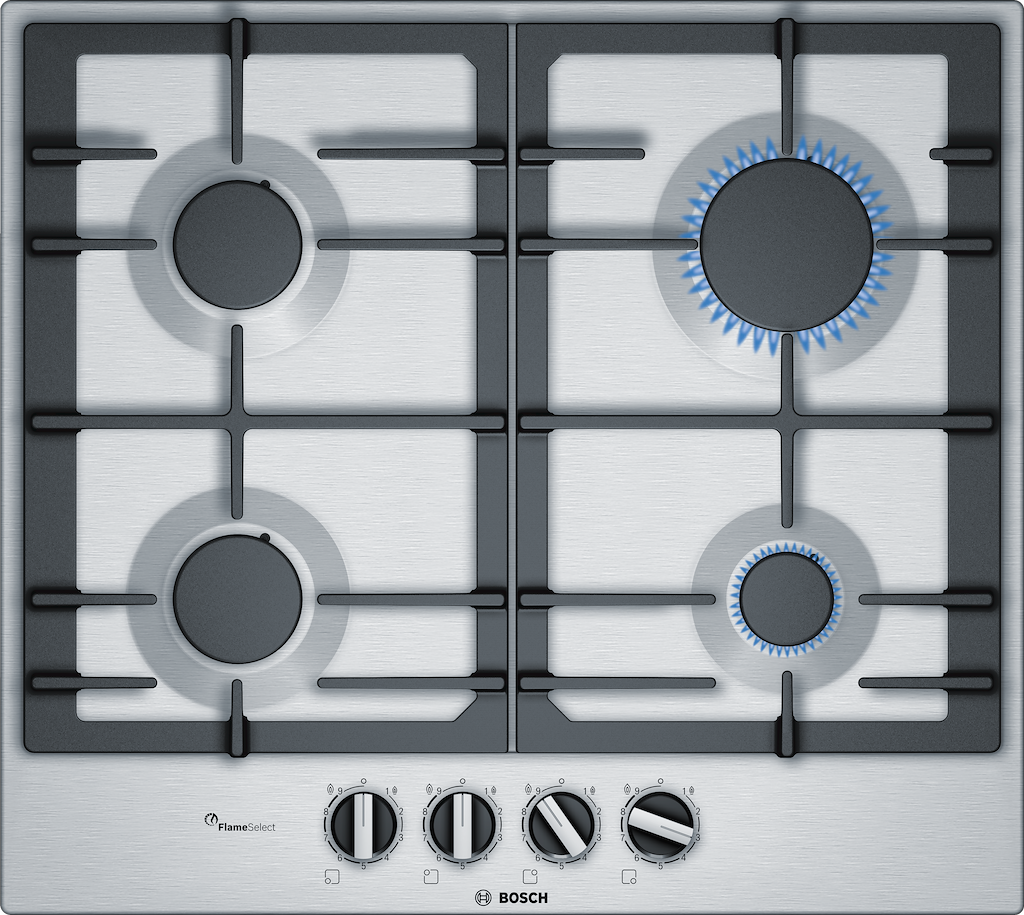

- 4 gas burners:
- Left front: standard burner up to 1.75 KW (depending on gas type)
- Left rear: Standard burner up to 1.75 KW (depending on gas type)
- Right rear: high-speed burner up to 3 KW (depending on gas type)
- Right front: economy burner up to 1 KW (depending on gas type)
Safety
- Flame failure safety device: prevents unwanted gas flow when flame goes out.
Installation (gas types & measurements)
- Usable for: Liquid gas G30,31 28-30/37mbar
- Nat gas L/LL G25/20mbar(DE)
- NG H/E 20mbar, E+ 20/25mbar
- Natural gas H 25 mbar (HU)
- Natural gas L 25 mbar (NL)
- Liquid gas G30 37 mbar (PL)
- Liquid gas 50 mbar
- Pre-set for natural gas
- Nozzle set for LPG jets included. Connection to 28-30/37 mbar bottled gas. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service.
- Dimensions of the product (HxWxD mm): 53 x 582 x 520
- Required niche size for installation (HxWxD mm) : 45 x 560 x (480 – 492)
- Min. worktop thickness: 30 mm
- Power cord: 1 m
- Connected load: 7.5 KW
-
Product SpecificationsEAN
4242002837468
Type of Control Settingssword knobs
Major Department NameHobs
Department NameGas Hobs
Colour NameStainless Steel
Features | BenefitsThe stainless-steel gas hob with FlameSelect: achieve perfect cooking results thanks to nine precisely defined power levels.
Country of Origin - CodeSPAIN
Alternative Fuel TypeLiquid gas G30,31 28-30/37mbar
Division NameCooking
Construction TypeBuilt-In
Brand NameBosch
Width582
Height45
Depth520
Consumer Item - Net Weight10.639
Consumer Item - Gross Weight11.5
Product Familygas hob w integrated controls
Type of Control | AppliancesMechanical
Installation TypeBuilt-In
Safety FeaturesFlame failure safety device
Energy InputGas
Appliance Current (A)3
Appliance Voltage (V)220-240
Appliance Frequency (Hz)50; 60
Approval CertificatesCE, Eurasian, Morocco
Plug Typeno plug
Power On IndicatorNo
Cord Length100
Min Niche Height480
Max Niche Height492
Min Niche Width560
Max Niche Width562
Niche Depth45
Hob TypeGas
Color of FrameStainless steel
Fuel TypeNat gas H/E/(L) 20 (25) mbar
Type of LidWithout
Heating Element Location 4middle back
Number of Radiant Plates0
Residual Heat Indicator TypeWithout
Heating Element TypeGas
Heating Element Type 3Gas
Heating Element Type 5Gas
Heating Element Type 7Gas
Heating Element Locationfront left
Heating Element Location 2center left
Type of Pan SupportElongated cast iron pan support
Type of Safety for GasElectromagnetic for each burner
Number of Halogen Plates0
Heating Element Location 6center right
Heating Element Location 7front right
Heating Element Location 8front middle / central
Heating Element Location 9front centre/cent
Number of Burners4
Number of Gas Burners4
Number of Electric Cooking Zones0
Number of Electric Plates0
Heating Element Location 5back right
Heating Element Location 3back left
Number of Induction Plates0
Number of Electric Warming Zones0
Ignition SystemYes
Main On | Off SwitchNo
Cooker | Over Automatic ProgramsNo
Compartment TimerNo
Gas ConnectionNo
Automatic ProgramsNo
Consumer Item - Width582
Consumer Item - Height45
Consumer Item - Depth520
-
