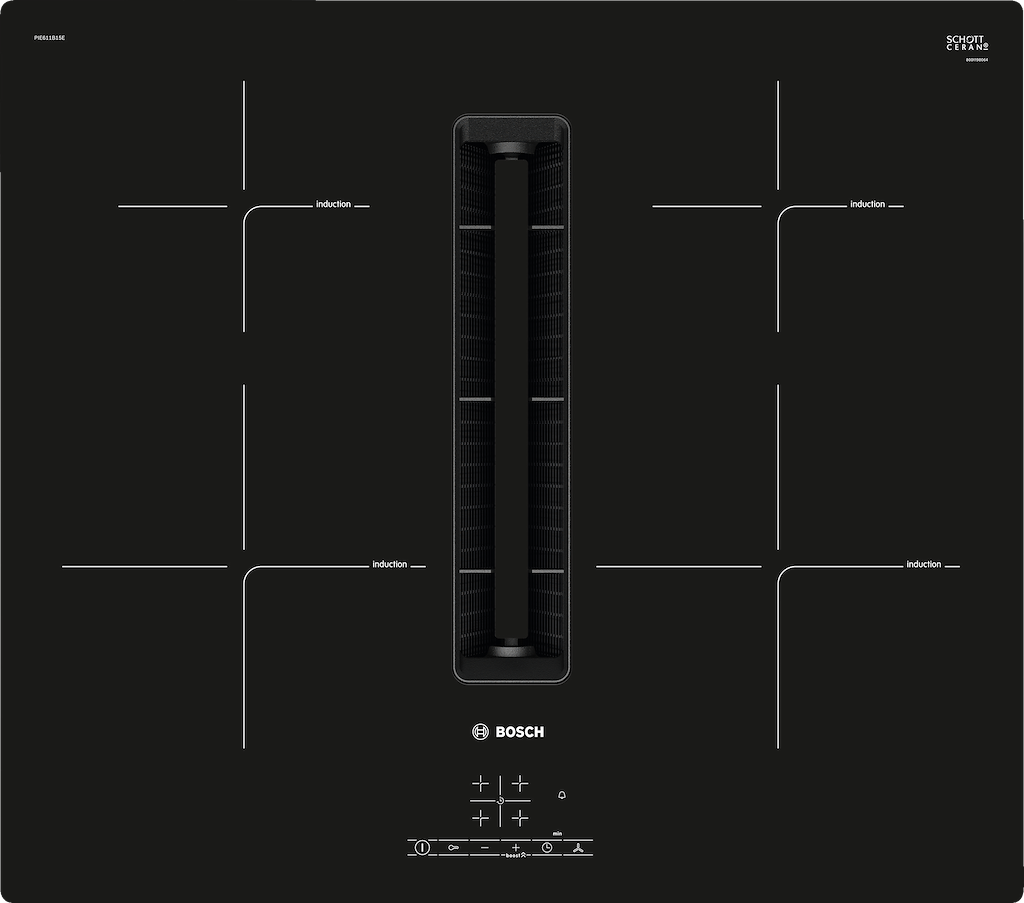

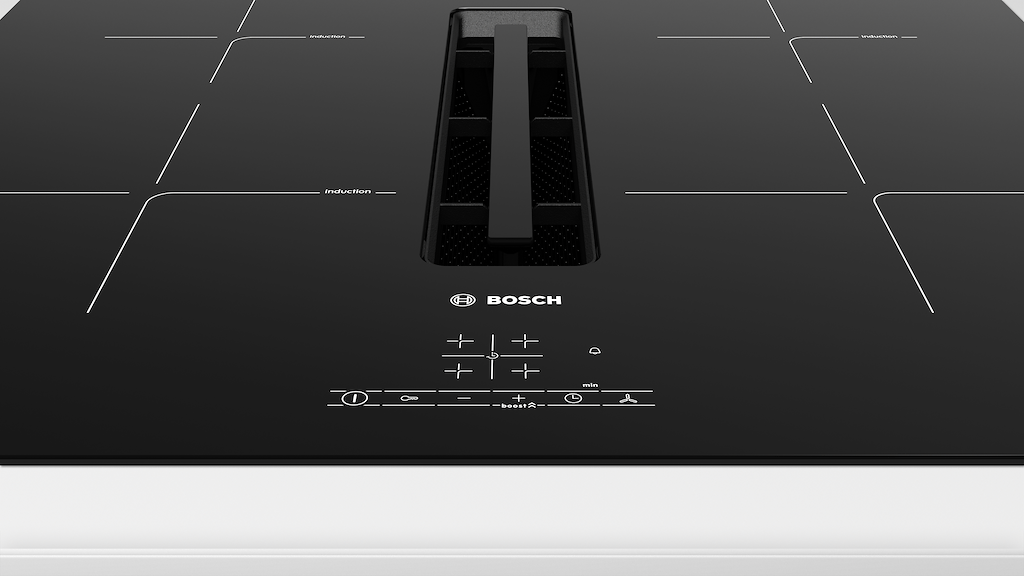

Serie | 4, Induction hob with integrated ventilation system, 60 cm, PIE611B15E
TouchSelect: Selection of the desired cooking zone and easy setting of the desired power level.
PowerBoost: up to 50% more power for faster heating on your induction hob.
If you turn off the cooktop it saves the last selected setting for a short time. If the cooktop is switched off within a short time again the former settings are still available.
Timer with switch-off function: Turns off the assigned cooking zone after the set time.
The handy ChildLock locks the control panel to prevent accidental changes in settings.
Cooking zone front left: 210 mm, 2.2 KW (max. power 3.7 KW)
Cooking zone rear left: 150 mm, 1.4 KW (max. power 2.2 KW)
Cooking zone rear right: 150 mm , 1.4 KW (max power 2.2 KW)
Cooking zone front right: 210 mm, 2.2 KW (max. power 3.7 KW)
Usage convenience
TouchSelect: control the power with imprinted +/- touch buttons.
Variable 17-stage power settings for each zone: precisely adapt the heat with 17 power levels (9 main levels and 8 intermediate levels).
Timer for all zones
: switches off the cooking zone at the end of the time set (e.g. for boiled eggs).
Timer – shows how long the cooktop is in use
: an alarm sounds at the end of the time set (e.g. for pasta).
Time saving & efficiency
PowerBoost function for all zones
: boil water faster thanks to 50% more energy than at the highest standard level.
QuickStart function: when switching on, the hob automatically selects the cooking zone with cookware (when placed on a zone whilst the hob is off).
ReStart function: in case of unintentional switch-off, this feature restores all previous settings by switching on the hob again within 4 seconds.
Quick Stop: quickly switch off a cooking zone with one longer touch.
Safety
2 stage residual heat indicator for each zone: indicates which cooking zones are still hot or warm.
Control panel lock: prevent unintended activation of the hob.
Freeze function: wipe overboiled liquids without unintentionally changing settings (blocking all touch buttons for 30 seconds).
Main on/off switch: switch off all cooking zones at the touch of a button.
Automatic safety shut off: for safety reasons, heating stops after a preset time if not used (possible to customise).
Installation
Dimensions of the product (HxWxD mm): 223 x 592 x 522
Required niche size for installation (HxWxD mm) : 223 x 560 x (490 – 490)
Min. worktop thickness: 16 mm
Connected load: 7.4 KW
Power management options for 16A, 13A or 10A connection: limit the maximum power if needed (depends on fuse protection of electric installation).
Power cord: 1.1 m, Cable included

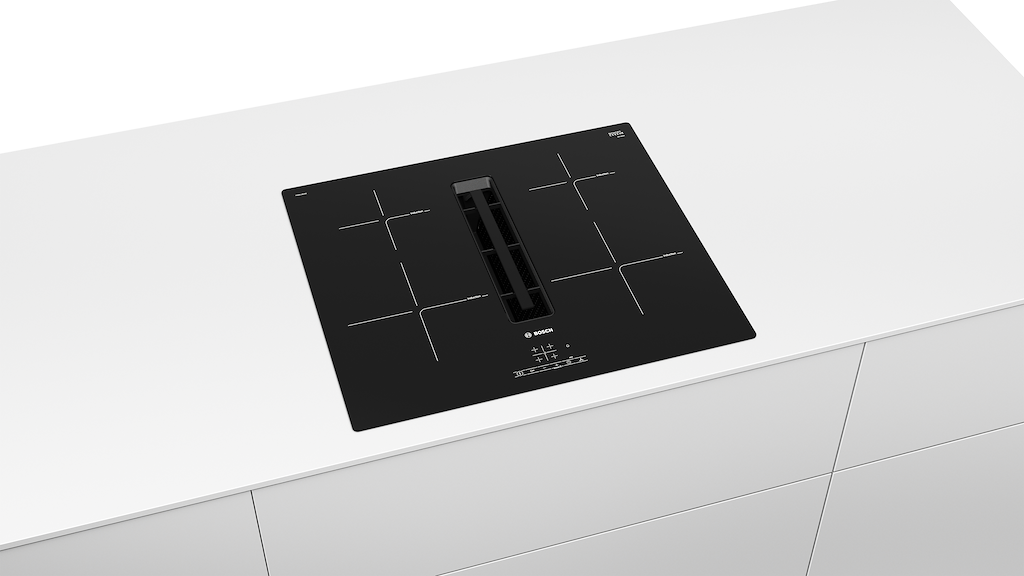

Suitable for installation into a 60 cm base cabinet
Integrated ventilation downdraft system
Induction cooktop with fully integrated high-performance downdraft extractor.
Suitable for ducted or recirculated extraction configuration (incl. differentiated software modes). Installation accessories for unducted recirculation, among these four cleanAir odor filters and a telescopic slider element, are included in the cooktop. Accessories for other installation options are available, details in the planning notes.
Aesthetically integrated fully flush air intake design with floating, heat resistant glass ceramics element for free movement and placement of cookware.
Ventilation system with 3 electronically controlled fan power levels and 1 Boost-/Intensive fan power levels (with automatic revert) via TouchSelect user interface
– Automatic switch-on of ventilation system when a cooking zone is used.
– Automatic delayed shut-off after cooking to erase residual odors after cooking (in specific ultra low-noise fan level, 12min in ducted extraction, 30min in recirculated extraction, can be shut-off manually).
– Fully manual control possible via TouchSelect.
High-performance, low-noise blower with energy-effcienct BLDC-technology. High extraction rates at very low noises with pleasant noise frequencies through psycho-acoustically and aerodynamically optimized interieur with enclosed, non-visible blower. Highly pressuredrop resistant even with longer and more complex ductings.
Easy-to-detach and easy-to-clean grease filter and liquid collector unit:
– Convenient one-hand removal of unit via floating glass ceramics handle.
– Integrated, large-scale, high performance stainless-steel grease filters with 12 filtration layers and one black top layer for enhanced aesthetical integration. Grease filtration efficiency of 94 %.
– All parts of the unit are easy-to-clean, fully dishwasher safe and heat resistant.
– (Upper) Liquid collector unit with 200ml of capacity for standard accidental spillages or cooking condensate.
– Powerful drainage system for spillages that exceed 200ml of liquids.
– Liquid safety collector with additional capacity of 700ml for more severe accidental situations. Dishwasher safe. Easily accessible and detachable from below.
– Overall capturing capacity of 900ml (200ml + 700ml).
– Watertight blower system.
Ventilation system performance:
– Extraction performance in ducted extraction (according to EN 61591): min. normal setting 330 m3/h , max. normal setting 500 m3/h , max. Boost-/Intensive setting 622 m3/h .
– Extraction performance in recirculated extraction (according to EN 61591): min. normal setting 276 m3/h , max. normal setting 460 m3/h , max. Boost-/Intensive setting 600 m3/h.
– Noise level in ducted extraction (Sound power level according to EN 60704-3): min. normal setting 61 dB re 1 pW, max. normal setting 69 dB re 1 pW, max. Boost-/Intensive setting 74 dB re 1 pW.
– Noise level in recirculated extraction (Sound power level according to EN 60704-3. ): min. normal setting 56 dB re 1 pW, max. normal setting 68 dB re 1 pW, max. Boost-/Intensive setting 72 dB re 1 pW.
– Grease filter efficiency (according to EN 61591) 94 %.
Consumption data and energy efficiency (according to Regulation (EU) No 65/2014):
– Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D).
– Fluid Dynamic Efficiency: A .
– Average energy consumption: 57 .
– Grease filtration effciency class: B .
– Noise min. normal setting & max. normal setting: 61 dB & 69 dB .
For recirculation configuration: 2 x 2 battery of directly integrated, high-performance cleanAir odor filters.
– Optimised odour reduction performance for cooking applications with complex odour molecules (e.g. fish).
– Large scale filter surface with high odour reduction capabilities.
– Lifetime of 360 hours of cooking (non-regenerative).
– Low-noise filters with optimised psycho-acoustics.
– Easy-to-access and easy-to-remove from above.
– Replenishment cleanAir filter set HEZ9VRCR0.
For ducted extraction configuration: 2 x 2 sets of directly integrated, high-performance low-noise acoustic filters for significantly lower noise and improved psycho-acoustics.
Planning & installation notes
Suitable for ducted or recirculated extraction installations in 4 different options (unducted, partly and fully ducted recirculation or ducted extraction). Installation accessories for unducted recirculation, among these four cleanAir odor filters and a telescopic slider element, are included in the cooktop. The included accessories allow easy and quick installations and can be planned in all worktop depths ≥60cm. For other types of installation, one of the following accessory kits is recommended:
HEZ9VDKR1 for partly-ducted recirculation in worktops of ≥60cm depth with max. worktop height of 960 mm. HEZ9VDKR0 for partly-ducted recirculation in worktops of ≥70cm depth with max. worktop height of 960 mm.
HEZ9VDKE1 as starter kit for ducted extraction in worktops of ≥60cm depth.
To complete the fully ducted extraction or to do any other individual recirculation planning different ducting accessories are available.
Planning suggestions:
– Installation is possible in island as well as wall oriented configurations.
The product and its accessories comply with the Needle Flame Test (according to IEC 60695-11-5) and the V2 flammability class (according to UL94).
– The max. immersion depth is 223 mm below worktop surface.
– The appliance must be freely accessible from below (i.e. for accessing the lower liquid safety collector).
– No false floor is necessary below the cooktop with integrated downdraft ventilation system. The drawers and/or shelves in the floor unit must be removable. The backpanel of the floor unit can be kept – only a cut-out for the air outlet is needed (position and size can be taken from the installation instructions).
An installation with unducted recirculation requires a vertical aperture of min. 25mm behind the backpanel of the furniture. Suggested for ideal performance are 50mm.
The minimum worktop thickness is 16 mm for top mounted and flush installed appliances with the standard installation system. Installation in even thinner worktops is also possible with the spare part: content 626792.
– The overall appliance weight is 26kg – the bearing capacity and stability, in the case of very thin worktops in particular, must be supported using suitable substructures. The overall appliance weight and the worktop manufacturer’s structural integrity specifications are to be taken into account.
– For partly ducted and unducted recirculation extraction installations, a return-flow aperture of ≥400cm² is to be respected in the plinth area. The aperture can be realized via outlet grids, lamella grids or subtly shortened plinths depending on the assortment of the kitchen furniture manufacturer.
– The air outlet on the backside of the appliance can directly be accessed with a male flat duct element (DN 150).
– The pressuredrop resistant blower allows longer and more complex ductings up to 8m with three 90° bows while keeping sufficient performance.
– When installing a ventilation hood with ducted extraction and a chimney-vented fireplace, the power supply line of the appliance needs a suitable safety switch. This is not required for configurations in recirculated extraction.
– In ducted extraction configuration a one-way flap (or backflow trap) with a maximum opening pressure of 65Pa should be installed.
Product Specifications
EAN
4242005250288
Installation Type
Built-In
Major Department Name
Hobs
Department Name
Induction Hobs
Colour Name
Black
Features | Benefits
The induction hob with integrated ventilation module: combines induction with ventilation technology for perfect results.
Country of Origin - Code
SPAIN
Sound Power Boost
74
Division Name
Cooking
Safety Features
childproof lock, Key Lock, Power management function, Safety time-switch-off
Height
223
Depth
522
Consumer Item - Net Weight
23.771
Consumer Item - Gross Weight
27.9
Product Family
Cooking zone ceramic
Energy Efficiency Class
B
Noise Level
69
Type of Control | Appliances
Electronic
Type of Control Settings
EasyTouch (Timer), front
Construction Type
Built-In
Width
592
Appliance Voltage (V)
220-240/380-415
Appliance Frequency (Hz)
50; 60
Approval Certificates
CE, VDE
Plug Type
no plug
Number of Motors
1
Power On Indicator
No
Cord Length
110
Min Niche Height
490
Max Niche Height
490
Min Niche Width
560
Max Niche Width
560
Niche Depth
223
Hob Type
Induction
Type of Frame
Frameless
Fluid Dynamic Efficiency
28.1
Fluid Dynamic Efficiency Class
A
Grease Filtering Efficiency
94.0
Grease Filtering Efficiency Class
B
Max Air Flow
500
Min Air Flow
330.0
Air Flow Boost
622.0
Sound Power Max Speed
69
Sound Power Min Speed
61
Brand Name
Bosch
Max Output Air Extraction
500
Heating Element Power 7
2.2
Number of Radiant Plates
0
Boost Position Output Recirculating
600.0
Type of Regulation
Stepless energy regulated
Type of Lid
Without
Residual Heat Indicator Type
Separate
Heating Element Type
Induction heating
Heating Element Type 3
Induction heating
Heating Element Type 7
Induction heating
Heating Element Power
2.2
Heating Element Power 3
1.4
Boost Position Air Extraction
622
Max Output Recirculating Air
555
Number of Induction Plates
4
Heating Element Location 2
center left
Heating Element Location 3
back left
Heating Element Location 4
middle back
Heating Element Location 5
back right
Heating Element Location 6
center right
Heating Element Location 7
front right
Heating Element Location 8
front middle / central
Heating Element Location 9
front centre/cent
Number of Burners
4
Number of Electric Cooking Zones
4
Heating Element Location
front left
Heating Element Power 5
1.4
Number of Electric Warming Zones
0
Ignition System
No
Main On | Off Switch
Yes
Cooker | Over Automatic Programs
No
Odor Filter
No
Compartment Timer
Yes
Heating Element Dimension
210
Heating Element Dimension 3
150
Heating Element Dimension 5
150
Heating Element Dimension 7
210
Automatic Programs
No
Consumer Item - Width
592
Consumer Item - Height
223
Consumer Item - Depth
522
